PEDOT series antistatic agent

PEDOT-P

Pedot-P is not affected by humidity. It can be applied to PET non-corona film and has ...
詳細資訊

PEDOT-P

Typical Properties :

Pedot-P is not affected by humidity. It can be applied to PET non-corona film and has good conductivity. The coating thickness can adjust its conductivity. It is suitable for permanent antistatic liquid.


Description :

  1. Main ingredient: 3,4-ethoxylene dioxy thiophene
  2. Exterior: Dark blue liquid
  3. pH: 2 ± 1
  4. solid content: 2 ± 1 %

Performance Feature :

  1. Can be applied directly without dilution
  2. Can be combined with alcohol for the dilution,The recommended ratio is 1:1

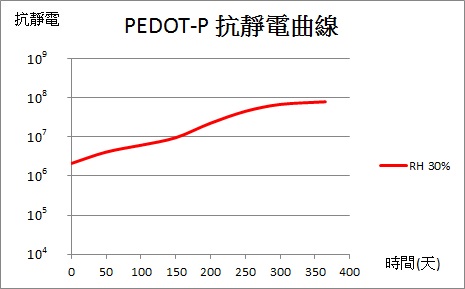

  3. It can reduce the surface resistance of the product to e6~e8 (the impedance value changes according to the humidity environment)

Packing :
Net weight 25 KG, PE barrels, please seal after use, place in a cool place, stability for about 12 months.

Application :

Can handle PET film non-corona treated surface.
Suggested conditions

Coating 2μm, 60°C/1 mins

Substrate Dilution ratio thickness Drying conditions Coating
PET Film stock solution 2μm 60℃/1min RH50% e6
